One Piece Dry Pressure Gauge

Ritherm One piece dry pressure gauge

Applications

1137 series One piece dry pressure gauge is for light industrial applications requiring damping. Designed for light vibration resistance with cost-effective. This type is only suitable for gases and liquids that do not attack the brass measuring system. It is widely used for air compressors, and medical devices, high humidity applications etc.

Ritherm One piece dry pressure gauge Special Features

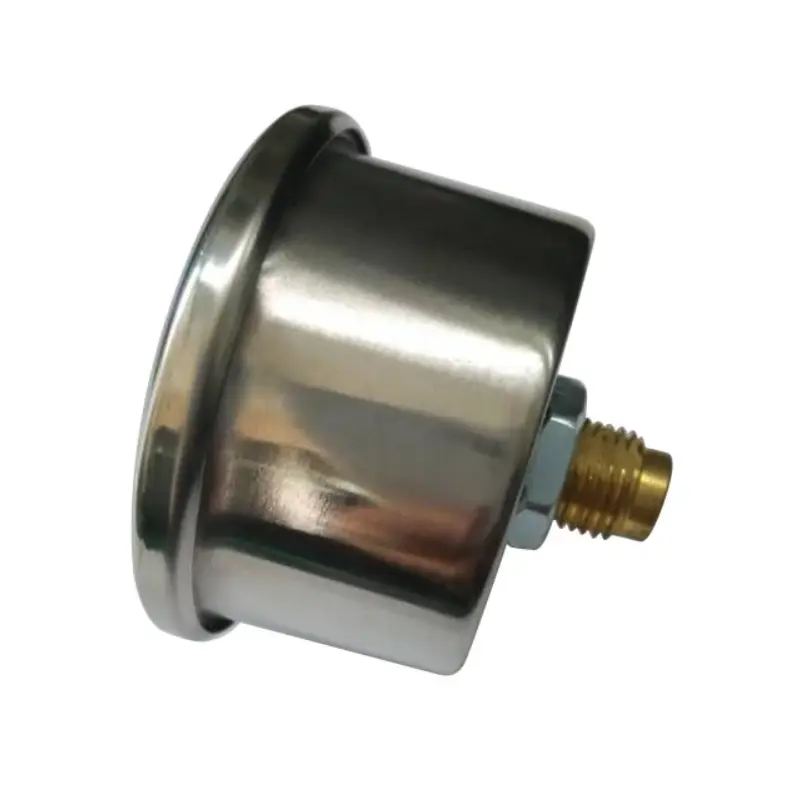

Model 1137 are made of 304 stainless steel case and crimped ring, brass inside and one piece connection. The nominal dial size is 40mm.

It is a bourdon tube pressure gauge, with phosphor bronze bourdon tube and brass movement.

The accuracy is 2.5% full scale.

The mounting can be direct mount (lower mount and back mount), panel mount, flush mount. It has big variety for mounting, which is suitable for all type of installation.

The process connection is available for 1/8”, 1/4”, 3/8”, 1/2”, thread in BSP, NPT, BSPT etc. Special thread is for option.

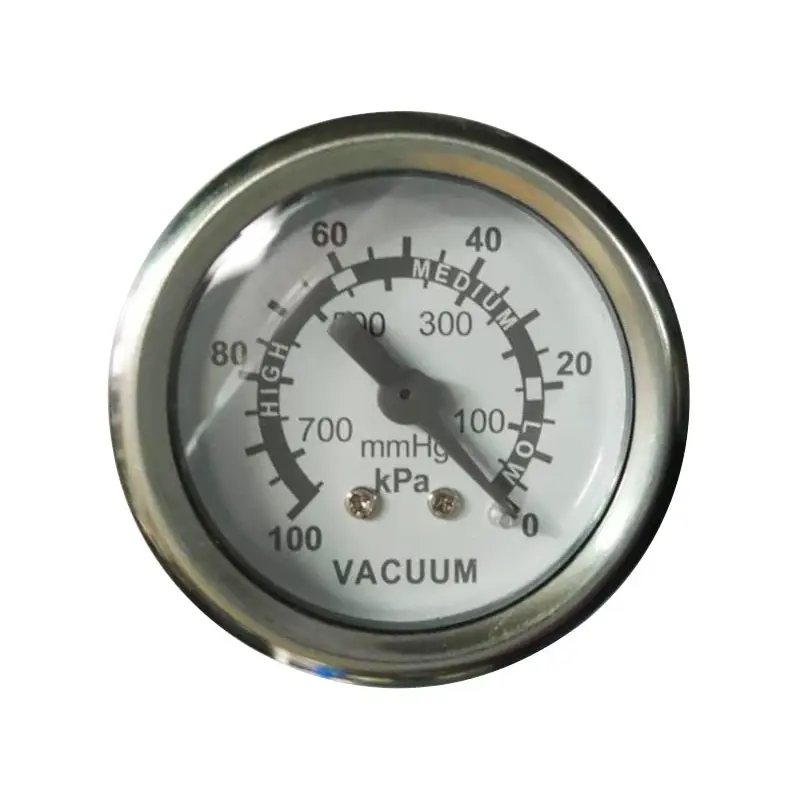

Pressure range from vacuum to 0.

It is suitable for indoor use with IP43.

The ambient temperature is suitable for -40+60 deg C.

The ambient temperature is suitable for -40+60 deg C.

The working temperature for standard use is -20+70 deg C. For heating industry like steam, please inform us when order, we can make up to +130 deg C with special soldering material.

One piece dry pressure gauge has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
