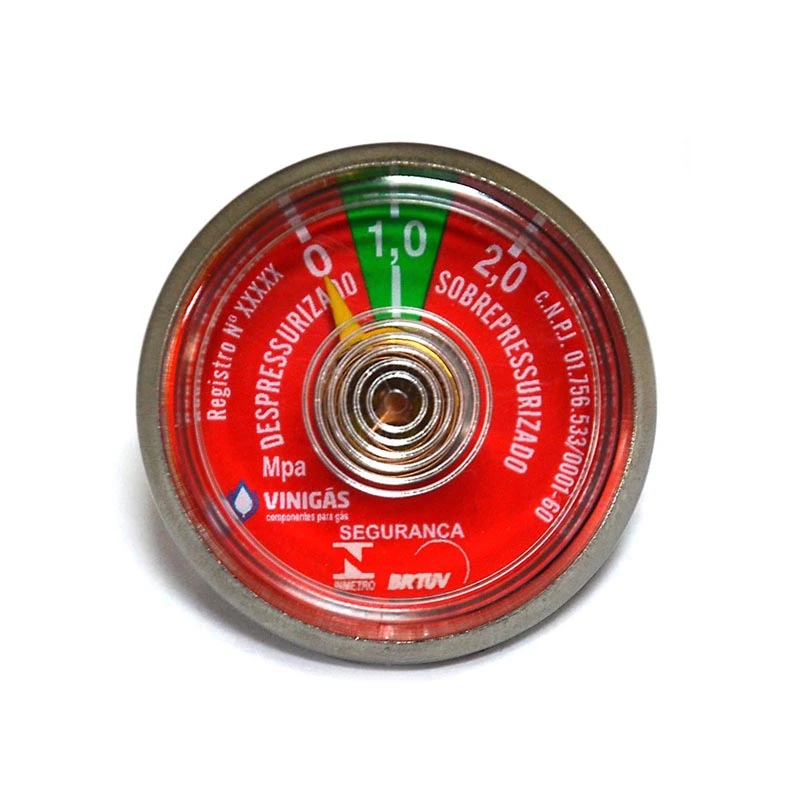

Fire Extinguisher Pressure Gauge

Applications

1187 series Fire extinguisher pressure gauge typically for measuring static pressure in dry gas media which is not corrosive to copper alloy parts. This pressure gauge is designed special for dry chemical type fire extinguisher use.

Ritherm Fire extinguisher pressure gauge Special Features

Model 1186 are made of stainless steel case and crimped sealed, Spiral tube in copper alloy, laser welded, Polycarbonate window. The nominal dial size is 37mm.

The accuracy is 4% full scale.

The process connection is 1/8" or 1/4 NPT/BSP male thread, Special thread is for option.

Pressure range from 0-400psi.

The ambient temperature is suitable for -30+60 deg C.

The working temperature for standard use is -30+60 deg C.

Fire extinguisher pressure gauge has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
