Water Pressure Gauge

Applications

Ritherm water pressure gauge used in water systems, that rely on the water pressure gauges to maintain optimal flow, detect leaks, and prevent pipe bursts. Also the water pressure gauge can used in light industry and suitable for gases and liquids that do not attack the copper measuring system.

The Bourdon tube pressure gauge is based on a validated Bourdon tube measurement system. The deflection of the Bourden tube is transmitted into pointer and indicated.

Ritherm water pressure gauges Special Features

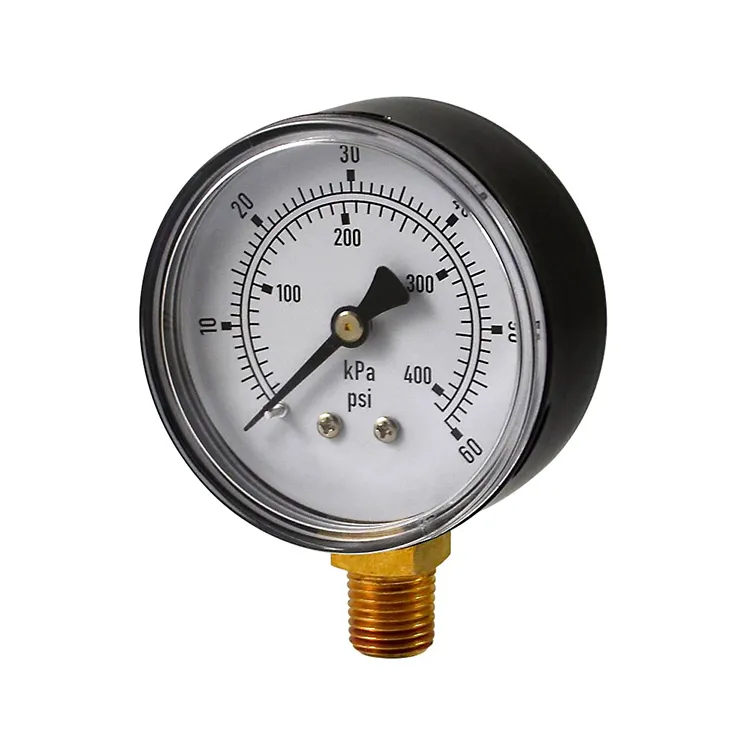

Ritherm water pressure gauges Model 1105 are made of black steel case and snap on acrylic window, brass inside and connection. We have dial size 40mm, 50mm, 63mm,

It is a bourdon tube pressure gauge, with phosphor bronze bourdon tube and brass movement.

The accuracy is 2.5% or 1.6% full scale.

The mounting can be direct mount (lower mount and back mount), panel mount, flush mount. It has big variety for mounting, which is suitable for all type of installation.

The process connection is available for 1/8”, 1/4”, 3/8”, 1/2”, thread in BSP, NPT, BSPT etc. Special thread is for option.

Pressure range from vacuum to 1bar to 400bar/psi.

It is suitable for indoor use with IP43.

The ambient temperature is suitable for -40+60 deg C.

The working temperature for standard use is -20+70 deg C. For heating industry like steam, please inform us when order, we can make up to +130 deg C with special soldering material.

Water pressure gauge has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
