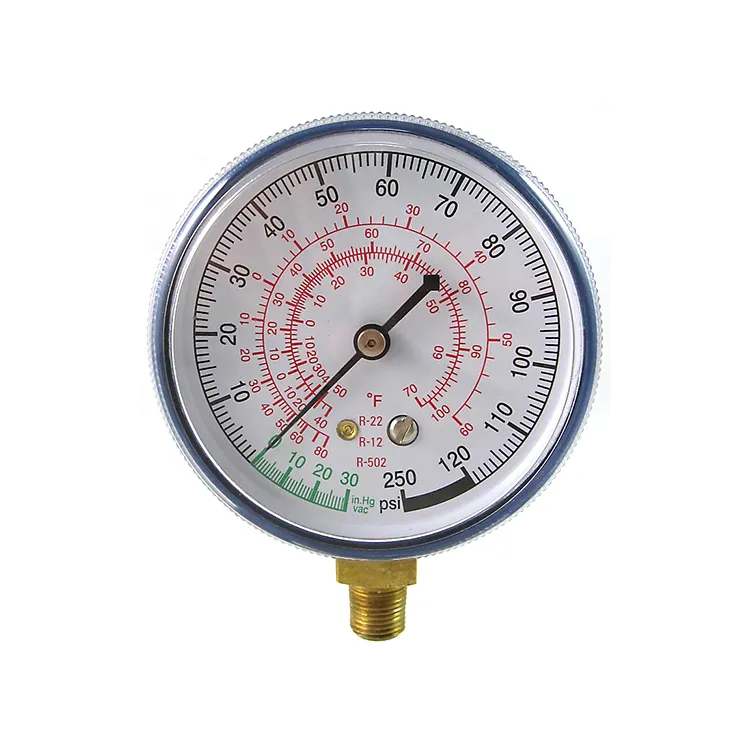

Plastic Case Refrigeration Pressure Gauge

Applications

1135 Plastic case Refrigeration pressure gauge can be permanently mounted in cooling system or used on portable manifolds. The multiple scale indicates the measured pressure and the converted temperature of the refrigerants.

Ritherm Plastic case Refrigeration pressure gauge Special Features

Model 1135 are made of ABS case in red or blue, and screw on polycarbonate window. Norminal dial size is 70mm.

It is a bourdon tube pressure gauge, with phosphor bronze bourdon tube and brass movement.

The accuracy is 1.6% full scale.

The mounting can be direct mount (lower mount and back mount).

The process connection is available for 1/8”, 1/4”, thread in BSP, NPT, BSPT etc. Special thread is for option.

Pressure range:-30"Hg-0-250psi, -30"Hg-0-350psi, 0-500psi.

It is suitable for indoor use with IP43.

The ambient temperature is suitable for -40+70 deg C.

The working temperature for standard use is -20+70 deg C.

Plastic case Refrigeration pressure gauge has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
