Bourdon Tube Dry Pressure Gauge
  • Bourdon Tube Dry Pressure GaugeBourdon Tube Dry Pressure Gauge

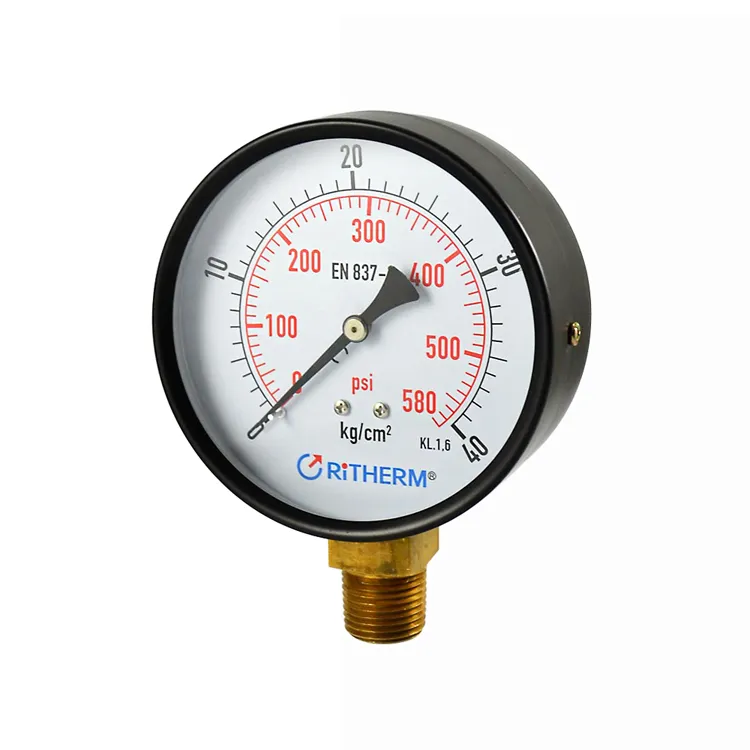

Bourdon Tube Dry Pressure Gauge

Ritherm is a large pressure gauge manufacturer and supplier in China. We have been specialized in pressure gauges for many years. Our Bourdon Tube Dry Pressure Gauges have a good quality advantage and cover most of the countries in the world. We look forward to becoming your long-term partner in China.
Send Inquiry
Product Description

Applications

Bourdon tube dry pressure gauge used in light industry and suitable for gases and liquids that do not attack the copper measuring system.

Especially for pneumatics, process, fabrication,compressed gas and common industrial application.


Ritherm Bourdon tube dry pressure gauge Special Features

Confomm to EN 837-1

Dial size:40,50,63,80,100,150,200,250mm, Quality design, economic price

Range: 0-600 bar

Bourdon Tube Dry Pressure Gauge

Ritherm Bourdon tube dry pressure gauge Specification

Norminal size (mm): 40, 50, 63, 80, 100, 150, 200, 250
Design: EN 837-1
Accuracy class: 40, 50: K1.2, 5
63, 80, 100, 150, 200, 250: K1.1.6
Scale range:
Pressure: 0-0.6 to 600bar/psi
Vacuum: -1bar to 0
Compound: -1 to 24bar/psi
or other equivalent units of pressure or vacuum
Operating temperature: Ambient: -40+70 deg CMedium: +70 deg C max
Protection class: lP 32
Material:
Case: Black steel
Bezel ring: Black steel (stainless steel crimped ring for U-clamp panel mount )
Window: instrument glass ( Polycarbouant for U-clamp panelmount )
Dial plate: Aluminum, pointer stop, white background. Blackmarking for single scale, black and red for dual scale.Pointer:Black aluminum
Bourdon tube: Copper alloy
<100bar: C shape
>100bar: Coiled type
Connection: Brass
Movement: Brass
Connection: standard version
40mm: G 1/8
50, 63mm:G 1/4 B
80mm:G 3/8 B
100, 150, 200, 250mm:G 1/2 B


Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
