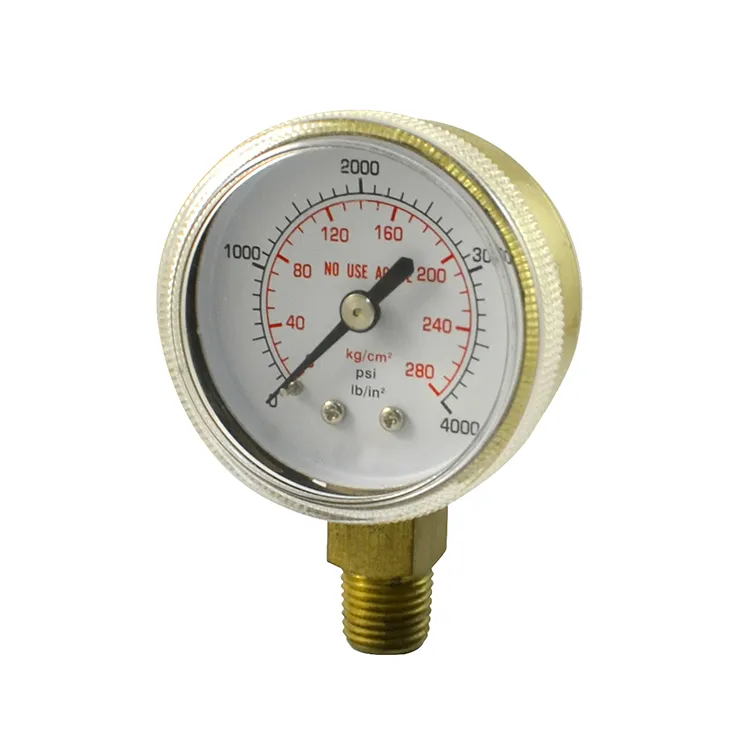

Welding and Cutting Pressure Gauge

Applications

1115 series Welding and cutting pressure gauge typically for equipment and apparatus for gas welding, cutting and allied processes, Pressure indication for industrial gases such as oxygen or acetylene, and pressure reducers or valves, or other environments that require use no oil.

Ritherm Welding and cutting pressure gauge Special Features

Model 1115 are made of stainless steel case and snap on acrylic window, stainless steel inside and connection, glass window. The nominal dial size is 63mm.

It is a bourdon tube pressure gauge, with stainless steel bourdon tube and movement.

The accuracy is 1.6% or 2.5% full scale.

The process connection is 1/4"NPT male thread, Special thread is for option.

Pressure range from 0 to 250bar.

The ambient temperature is suitable for -40+60 deg C.

The working temperature for standard use is -20+60 deg C.

Welding and cutting pressure gauge has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
