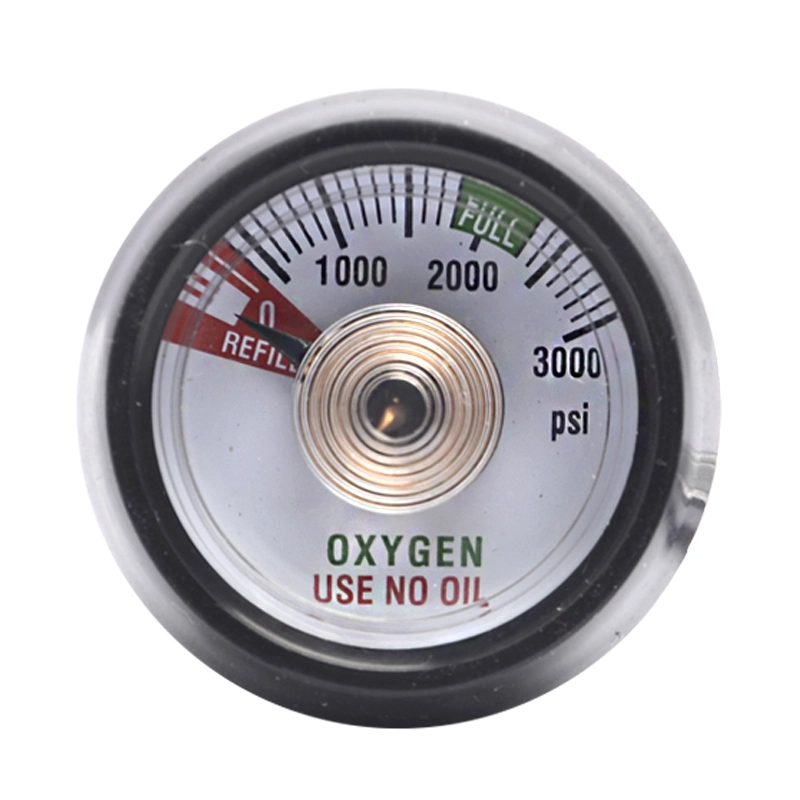

Beryllium Tube Pressure Gauge for Oxygen

Applications

1186 series Beryllium tube pressure gauge for oxygen typically for measuring static pressure in dry gas media which is not corrosive to copper alloy parts. This pressure gauge is designed special for medical gas regulator on cylinder.

Ritherm Beryllium tube pressure gauge for oxygen Special Features

Model 1186 are made of stainless steel case and crimped sealed, Stainless steel spiral tube, copper alloy, beryllium copper, Polycarbonate window. The nominal dial size is 36mm or 41mm.

The accuracy is 4% full scale.

The process connection is 1/8" or 1/4 NPT/BSP male thread, Special thread is for option.

Pressure range from 0-3000psi, with UL approval

0-4000psi, without UL approval.

The ambient temperature is suitable for -20+60 deg C.

The working temperature for standard use is -20+60 deg C.

Beryllium tube pressure gauge for oxygen has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
