Dry Or Utility Pressure Gauge: Essential Knowledge For Engineers And Buyers

Whether you call it a Dry Or Utility Pressure Gauge, this instrument is the workhorse of countless industrial, commercial, and HVAC systems. In this comprehensive guide, we dissect the meaning, compare dry vs liquid-filled versions, list pros & cons, answer critical questions, and introduce reliable sourcing from Ningbo Rising Instrument Co.,Ltd. Everything you need to know before your next purchase — all in one place.

❓ What Exactly Is a “Dry Or Utility Pressure Gauge”?

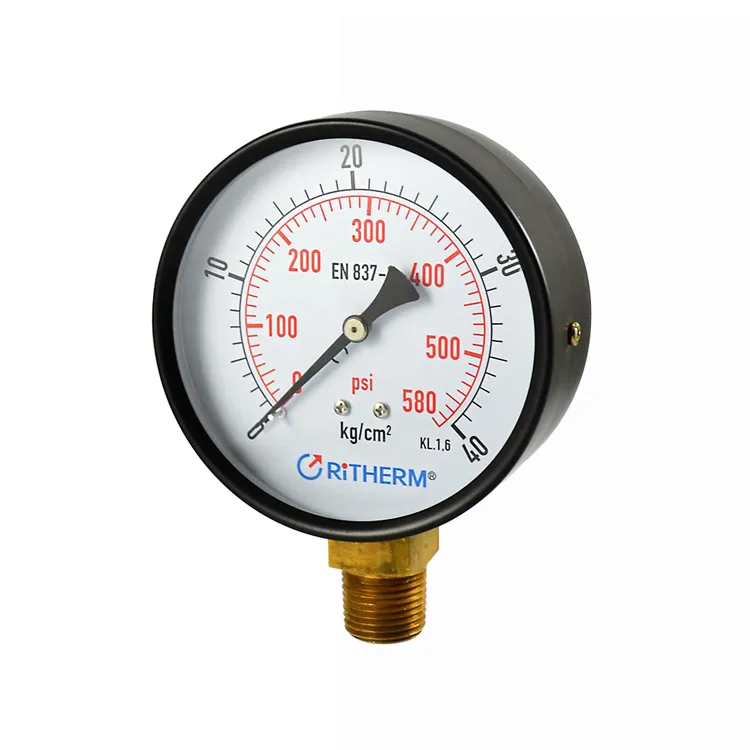

A Dry Or Utility Pressure Gauge refers to a pressure gauge where the internal mechanism (typically Bourdon tube, movement, and dial) operates in air or gas — without any damping fluid like glycerin or silicone oil. It's called “utility” because it's designed for general‑purpose applications where moderate vibration, low pulsation, and non‑corrosive media are present. These gauges are cost‑effective, lightweight, and easy to read. They are the most common pressure indicators in air compressors, water systems, and light industrial panels.

Ningbo Rising Instrument Co.,Ltd. produces a full line of dry and utility pressure gauges with brass internals, steel cases, and dual scales (psi/bar) to suit global markets. All Rights Reserved.

❓ How Does a Dry Or Utility Gauge Differ From a Liquid-Filled Gauge?

The primary difference lies in the internal environment. A dry gauge contains only ambient air inside the case, while a liquid‑filled gauge is partially filled with glycerin (or silicone) to dampen pointer flutter caused by rapid pressure changes or mechanical vibration. Below is a quick comparison:

For many utility applications (pumps, tanks, filters), a dry gauge performs perfectly. Ningbo Rising Instrument Co.,Ltd. offers both types, ensuring you get the exact match for your environment. All Rights Reserved.

❓ Dry / Utility Pressure Gauge: What Are Its Pros & Cons?

Understanding the strengths and limitations of a Dry Or Utility Pressure Gauge helps in correct selection. We've summarised them below:

✅ Advantages

• Cost‑effective: Ideal for large projects or OEM equipment where budget matters.
• Lightweight & compact: Easier to mount in tight spaces.
• No fluid to leak: No risk of glycerin loss in high temperatures or overtime.
• Environmentally friendly: No disposal concerns for fill liquids.
• Direct reading: Slightly faster response for non‑pulsating pressures.

⚠️ Disadvantages

• Poor vibration damping: Pointer flutter can reduce readability on reciprocating pumps.
• Less protection against corrosion: Moisture can enter case more easily (unless hermetically sealed).
• Not ideal for severe service: High shock or rapid cycles may damage movement faster.
• Less stable under sudden pressure drops: Needle might oscillate.

For typical air, water, or oil applications with minimal pulsation, the dry utility gauge is a smart choice. For heavy hydraulic or near rotating machinery, consider a liquid‑filled version from Ningbo Rising Instrument Co.,Ltd. – they offer both.

❓ Where Are Dry Or Utility Pressure Gauges Most Commonly Used?

Thanks to their simplicity and low cost, these gauges appear in almost every industry. Below are the top application areas:

• Compressed air systems – monitoring receiver tanks, filters, regulators.
• HVAC – refrigerant lines (low side), water pressure in chillers/boilers.
• Water treatment – filter pressure, pump discharge, reverse osmosis.
• Industrial panels – general indication on hydraulic power units (low vibration).
• Agricultural machinery – sprayers, irrigation control.
• Portable equipment – pressure washers, tire inflation stations.

Ningbo Rising Instrument Co.,Ltd. supplies dry gauges with various connection sizes (1/4", 1/2" BSP/NPT) and ranges (0-15 psi up to 0-1000 psi) to cover these needs. All Rights Reserved.

❓ Is A Dry Gauge Accurate Enough For Critical Processes?

Yes, dry utility gauges can be surprisingly accurate. Standard commercial grades offer ±2-3% of span (ASME B40.100 Grade B or Grade A). For applications requiring tighter precision, Ningbo Rising Instrument Co.,Ltd. can supply dry gauges with ±1% accuracy (test gauge style). However, if the process involves wild pulsation, even a high‑accuracy dry gauge will be hard to read — in that case a liquid‑filled or a digital gauge is preferable.

Remember: accuracy and readability under vibration are two different things. Dry gauges excel in steady conditions.

❓ How To Install & Maintain A Dry Or Utility Pressure Gauge?

Proper installation extends gauge life. Follow these steps:

1. Choose the right range: Normal operating pressure should be 25%–75% of full scale.
2. Use a siphon or pigtail for steam or high temperature media to protect the Bourdon tube.
3. Seal threads with PTFE tape (tape only on threads, not blocking the tip).
4. Mount upright (vertical) for best readability unless gauge is specified for other orientations.
5. Avoid excessive vibration – if unavoidable, add a flexible hose or move to liquid‑filled.

Maintenance: periodically check for zero drift, cracked lens, or corrosion. Dry gauges require no internal lubrication. If the glass fogs, replace the gauge to prevent mechanism rust.

❓ Frequently Asked Questions (FAQ) — Dry Or Utility Pressure Gauge

📚 References & Industry Standards

• ASME B40.100-2013: Pressure Gauges and Gauge Attachments.
• ISO 5167-1: Measurement of fluid flow by means of pressure differential devices.
• Ningbo Rising Instrument Co.,Ltd. technical catalog — Dry & Utility Gauge Series (available on request).
• Health and Safety Executive (UK) guidance on pressure systems.

For further reading, visit our product page for Dry Utility Gauges (example anchor link). Ningbo Rising Instrument Co.,Ltd. holds all rights to proprietary designs mentioned. All Rights Reserved.
