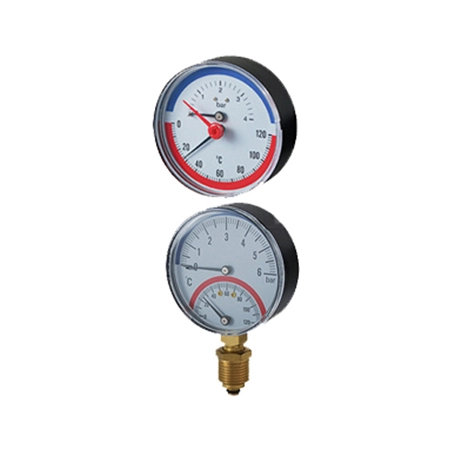

ABS Case Bimetal Thermo-manometer

Applications

Ritherm ABS Case Bimetal Thermo-manometer series is specifically designed for hot water boilers, are two gauges-in-one. They measure water pressure in bar and temperature in deg C. The large round dials are easy to read with a pressure accuracy of +2.5% of full scale and temperature ac-curacy of +2% of full scale.

Ritherm ABS case Bimetal thermomanometer Special Features

2710 Bimetal thermomanometer are made of ABS case, Snap on acrylic window, reset red pointer installed for option. Brass movement, high-sensitivity bimetal coil of temperature element, copper tube and connection. Lower or back mount.

The accuracy is 2.5% full scale.

Nominal size is 63mm and 80mm.

The process connection is available for 1/4”, 1/2”, thread in BSP, NPT, BSPT etc. Special thread is for option.

Pressure range from 0-4bar, 0-6bar, 0-10bar or 0-16bar.

Temperature range from 0-120 deg C.

It is suitable for indoor use with IP54.

The ambient temperature is suitable for -20+60 deg C.

The working temperature for standard use is -20+120 deg C.

ABS Case Bimetal Thermo-manometer has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
