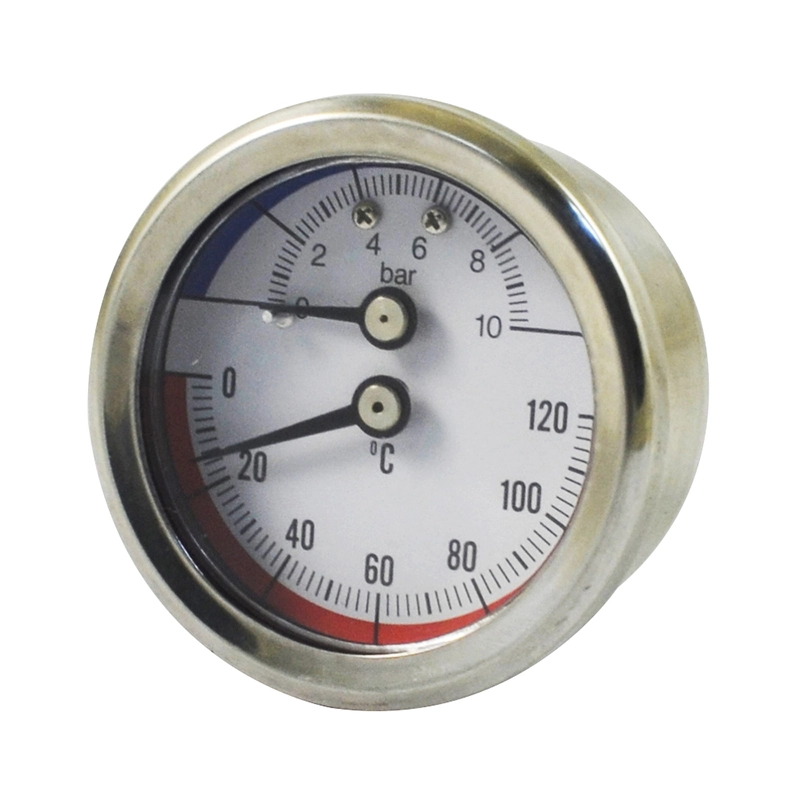

Liquid Filled Bimetal Thermo-manometer

Applications

Ritherm Liquid Filled Bimetal Thermo-manometer series is specifically designed for hot water heating system, mixing water system, typically for boiler system. It measures both water pressure and water temperature.

Ritherm Liquid filled bimetal thermomanometer Special Features

2726 thermo-manometer are made of stainless steel case and crimped ring. Brass movement, high-sensitivity bimetal coil of temperature element, copper tube and connection. Polycarbonate window, Lower or back mount.

The accuracy is 2.5% full scale.

Nominal size is 63mm.

The process connection is available for 1/4”, 1/2”, thread in BSP, NPT, BSPT etc. Special thread is for option.

Pressure range from 0-4bar, 0-6bar, 0-10bar or 0-16bar.

Temperature range from 0-120 deg C.

It is suitable for indoor use with IP54.

The ambient temperature is suitable for -20+60 deg C.

The working temperature for standard use is -20+120 deg C.

Liquid Filled Bimetal Thermo-manometer has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
