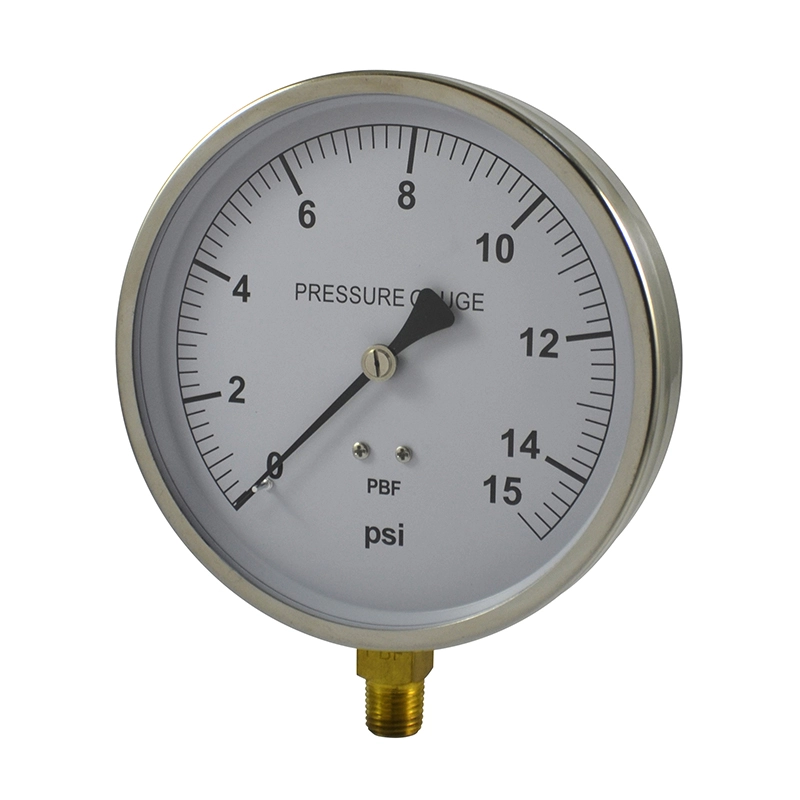

Contractor Pressure Gauge

Applications

1165 series Contractor pressure gauge typically use in quality industry and suitable for gases and liquids that do not attack the brass measuring system.

Ritherm Contractor pressure gauge Special Features

Model 1165 are made of stainless steel case and bezel ring. Copper alloy bourdon tube, brass inside and connection, polycarbonate window. Aluminum dial plate and adjustable aluminum pointer.

The nominal dial size is 114mm.

The accuracy is 1.0% full scale.

The process connection is 1/4"NPT male thread, Special thread is for option.

Pressure range from 0 to 1000psi.

The ambient temperature is suitable for -40+60 deg C.

The working temperature for standard use is -20+60 deg C.

Contractor pressure gauge has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
