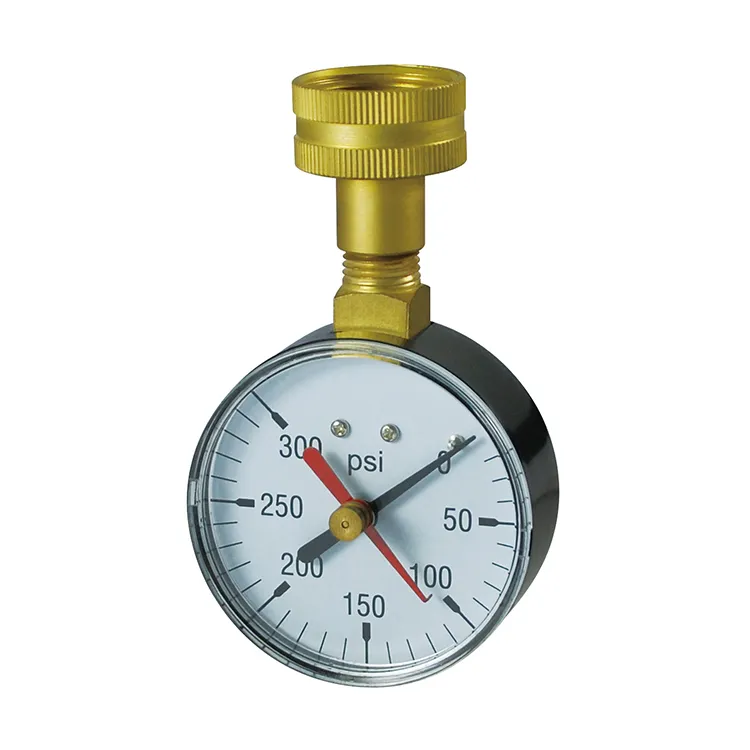

Water Test Pressure Gauge

Applications

1161 series water test pressure gauge is typically for use in measuring residential and commercial water pressure, also selection and adjustment of valve regulators, and other controls.

Ritherm water test pressure gauge Special Features

Model 1161 are made of black steel case and bezel ring, brass inside and connection, glass window. The nominal dial size 50mm, 63mm.

It is a bourdon tube pressure gauge, with phosphor bronze bourdon tube and brass movement. With chrome plated steel Valve and vale body.

The accuracy is 2.5% full scale.

The process connection is 3/4” hose female thread, Instrumental connection is 1/4"NPT female thread.

Special thread is for option.

Pressure range from 0 to 300psi.

The ambient temperature is suitable for -40+60 deg C.

The working temperature for standard use is -20+60 deg C.

Water test pressure gauge has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
