Oxyacetylene Pressure Gauges

Ritherm Oxyacetylene pressure gauge

Applications

1113 series Oxyacetylene pressure gauge typically for equipment and apparatus for gas welding, cutting and allied processes, Pressure indication for industrial gases such as oxygen or acetylene, and pressure reducers or valves, or other environments that require use no oil.

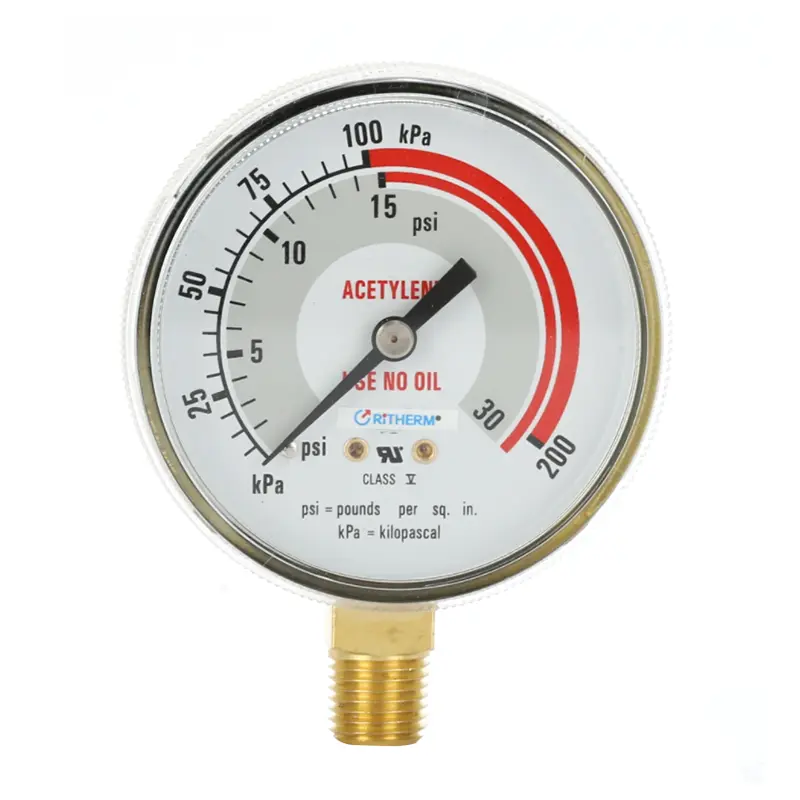

Ritherm Oxyacetylene pressure gauge

Model 1113 are made of Gold painted steel case and screw on polycarbonate window, brass inside and connection. The nominal dial size is 63mm.

It is a bourdon tube pressure gauge, with stainless steel bourdon tube and movement.

The accuracy is 1.6% full scale.

The process connection is 1/4"NPT male thread, Special thread is for option.

Pressure range from 0 to 5000psi.

The ambient temperature is suitable for -40+70 deg C.

The working temperature for standard use is -20+70 deg C.

Oxyacetylene pressure gauge has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
