Dental Air Pressure Gauges

Ritherm Dental air pressure gauge

Applications

1146 series Dental air pressure gauge typically for air service only, specially designed for dental machine.

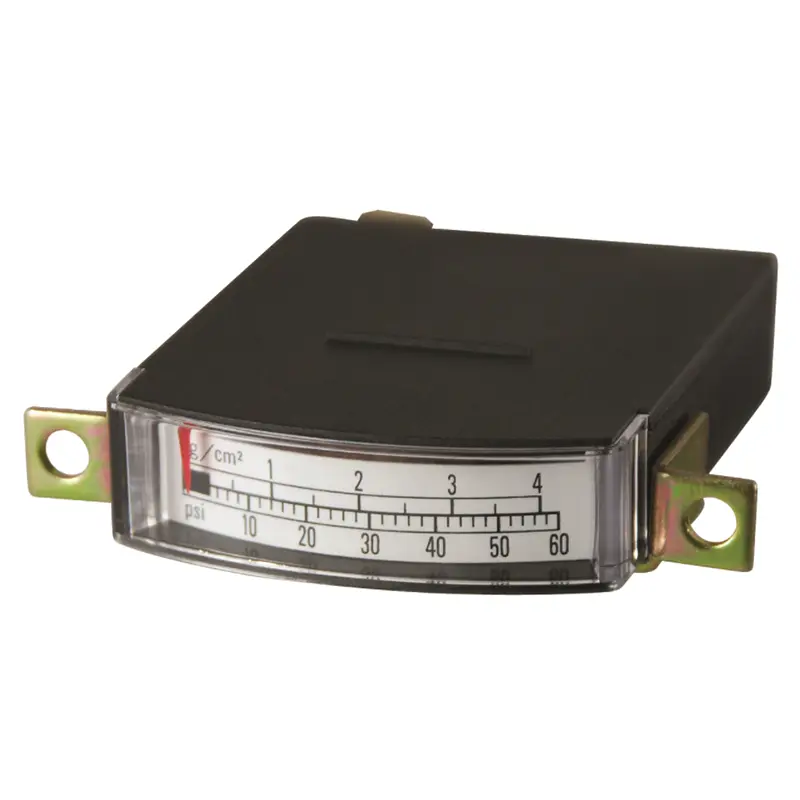

Ritherm Dental air pressure gauge

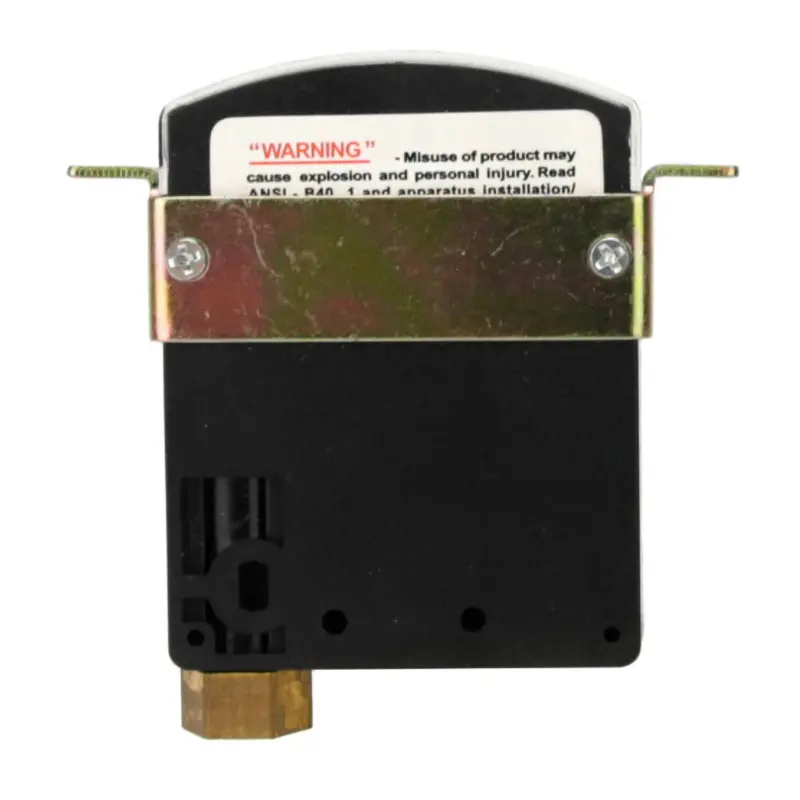

Model 1146 are made of ABS case, plastic window, Zinc plated steel bracket, flush mount tabs for installation, brass inside and connection. The nominal dial size is 1/2”x 1-3/4” face.

It is a bourdon tube pressure gauge, with barss bourdon tube and movement.

The accuracy is 2.5% full scale.

The process connection is 10-32"UNF female inlet thread, Special thread is for option.

Pressure range from 0 to 60psi or 0-100psi.

The ambient temperature is suitable for -40+70 deg C.

The working temperature for standard use is -20+70 deg C.

Dental air pressure gauge has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
