Bimetal Thermometers

Applications

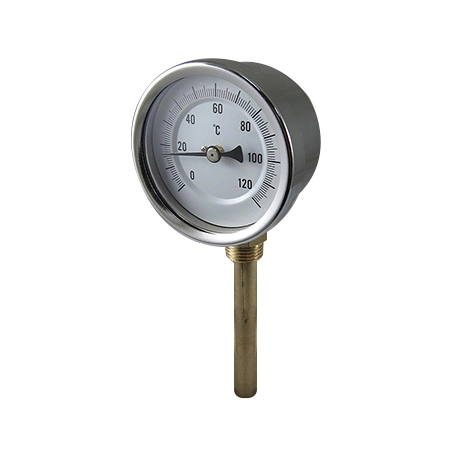

2300 bimetal thermometer series typically used for light industry, HVAC use, especially for refrigeration and hot water. The bimetal thermometers are screwed with thermowells in the respective application.

Ritherm bimetal thermometer Special Features

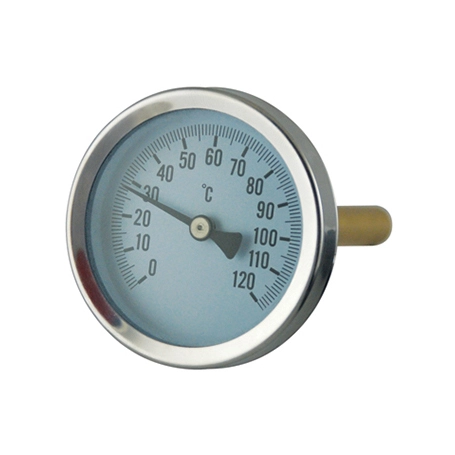

Model 2300 are made of chrome plated steel case and stainless steel bezel ring, Copper alloy bulb, adjustable at end, glass window.

The nominal dial size 43mm, 63mm, 80mm, 100mm.

Brass pocket, friction at axial of thermometer case, fixing by screw for option. Pocket length including thread: 30,40, 50,63, 100,150,200 mm etc.

/2"BSP center back connection.

Bimetal coil temperature sensor.

Range: -40+40 deg C,-30+50 deg C, -20+60 deg C, 0-120 deg C, high temperature up to 600 deg C for option in Stainless Steel bulb and pocket for option.

Accuracy: 2% of full scale

bimetal thermometer has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge and thermometer manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard, ANSI B40.1 standard, and EN13190 standard.
