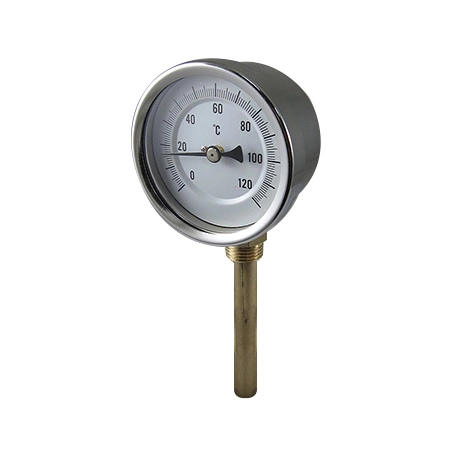

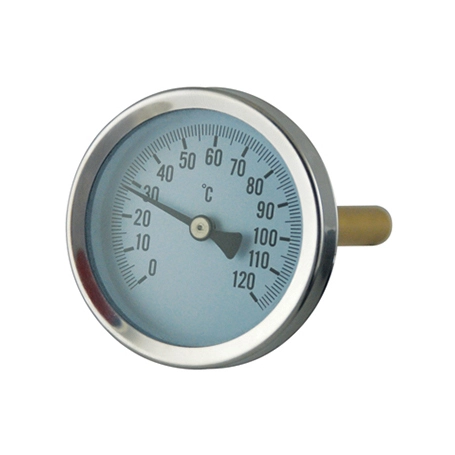

Hot Water Bimetal Thermometer

Applications

2301 Hot water bimetal thermometer series typically used for light industry, HVAC use, especially for refrigeration and hot water. The bimetal thermometers are screwed with thermowells in the respective application.

Ritherm Hot water bimetal thermometer Special Features

Model 2301 are made of chrome plated steel case and bayonet bezel ring, Copper alloy bulb, adjustable at end, glass window.

The nominal dial size 63mm, 80mm, 100mm.

Brass pocket, friction at axial of thermometer case, fixing by screw for option. Pocket length including thread: 50,63, 100,150,200 mm etc.

/2"BSP bottom connection.

Bimetal coil temperature sensor.

Range: -40+40 deg C,-30+50 deg C, -20+60 deg C, 0-120 deg C, high temperature up to 600 deg C for option in Stainless Steel bulb and pocket for option.

Accuracy: 2% of full scale

Hot water bimetal thermometer has 1 year lifetime guarantee.
