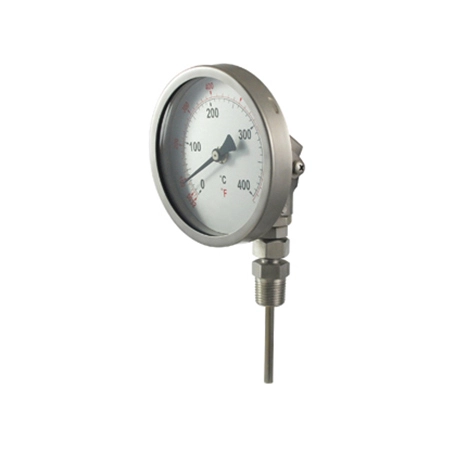

All Stainless Steel Bimetal Thermometer

Applications

2322 All stainless steel bimetal thermometer series typically used for General process instrumentation in the chemical and petrochemical industries, oil and gas industries, energy industries, also in harsh and aggressive environments.

Ritherm All stainless steel bimetal thermometer Special Features

Model 2322 are made of stainless steel case and bayonet bezel ring, stainless steel bulb, adjustable at end, instrument glass window.

The nominal dial size 80mm, 100mm, 160mm.

Stainless steel pocket, friction at axial of thermometer case, fixing by screw for option. Pocket length including thread: 50,63, 100,150,200 mm etc.

/2"BSP bottom connection.

Bimetal coil temperature sensor.

Range: -30+50 deg C, -20+60 deg C, 0-600 deg C.

Accuracy: 1% or 1.6% of full scale

All stainless steel bimetal thermometer has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge and thermometer manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard, ANSI B40.1 standard, and EN13190 standard.
