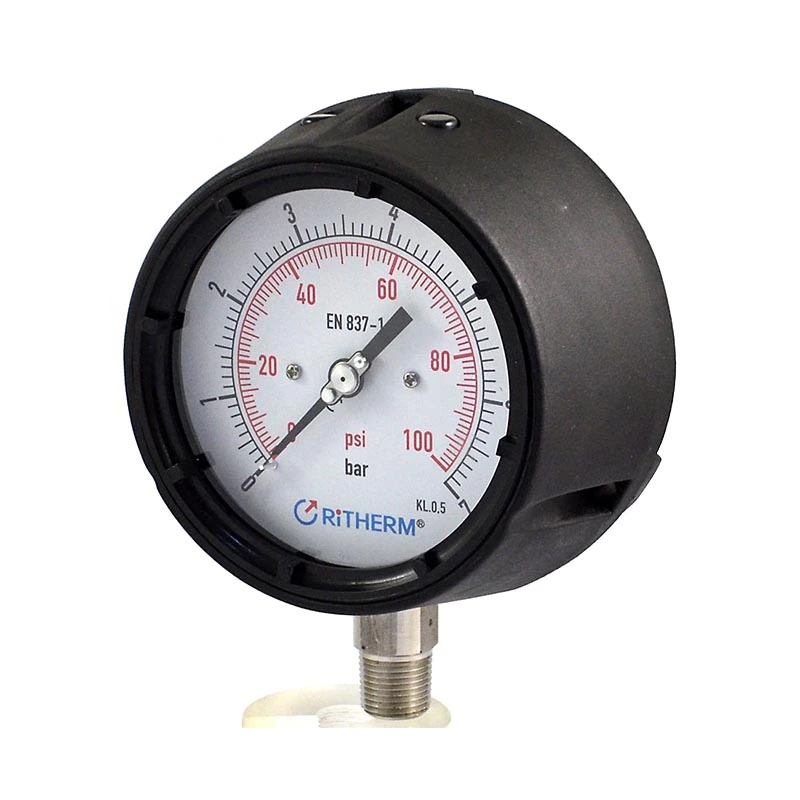

Polypropylene Case Pressure Gauge

Applications

1360 Polypropylene case pressure gauge is for gaseous and liquid aggressive media that are not highly viscous or crystallization, also in aggressive ambience.

With liquid filed version for high dynamic pressure vibration. Process industries including chemical plants, petrochemical refineries, pharmaceutical, food and beverage processing, offshore oil platforms, paper-mills, salt mines, fertilizer plants and on shipboard.

Ritherm Polypropylene case pressure gauge Special Features

Model 1360 are made of black phenolic case, laminated safety glass window, 316 stainless steel tube and connection. Nominal dial size 4.5”.

It is a bourdon tube pressure gauge, with High-quality stainless steel materials bourdon tube and movement.

The accuracy is 0.5% full scale.

The mounting can be direct mount (lower mount and back mount), panel mount, flush mount. It has big variety for mounting, which is suitable for all type of installation.

The process connection is available for 1/8”, 1/4”, 3/8”, 1/2”, thread in BSP, NPT, BSPT etc. Special thread is for option.

Pressure range from vacuum to 1bar to 1000bar/psi.

It is suitable for indoor use with IP65.

The ambient temperature is suitable for -40+60 deg C.

The working temperature for standard use is -20+70 deg C. For heating industry like steam, please inform us when order, we can make up to +200 deg C with special soldering material.

It is normally filled with glycerin. So we also call it glycerin filled pressure gauge. Glycerin can work at temperature from -20+70 deg C, which is commonly used for damping. If we fill Silicone oil, we called it silicone oil filled pressure gauge. Silicone oil is recommended for low pressure and high temperature applications. We recommend to use silicone oil filled pressure gauge for as low as -40 deg C, and as high as +130 deg C working media or ambient temperature zones. It is often used in very cold weather.

Polypropylene case pressure gauge has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
