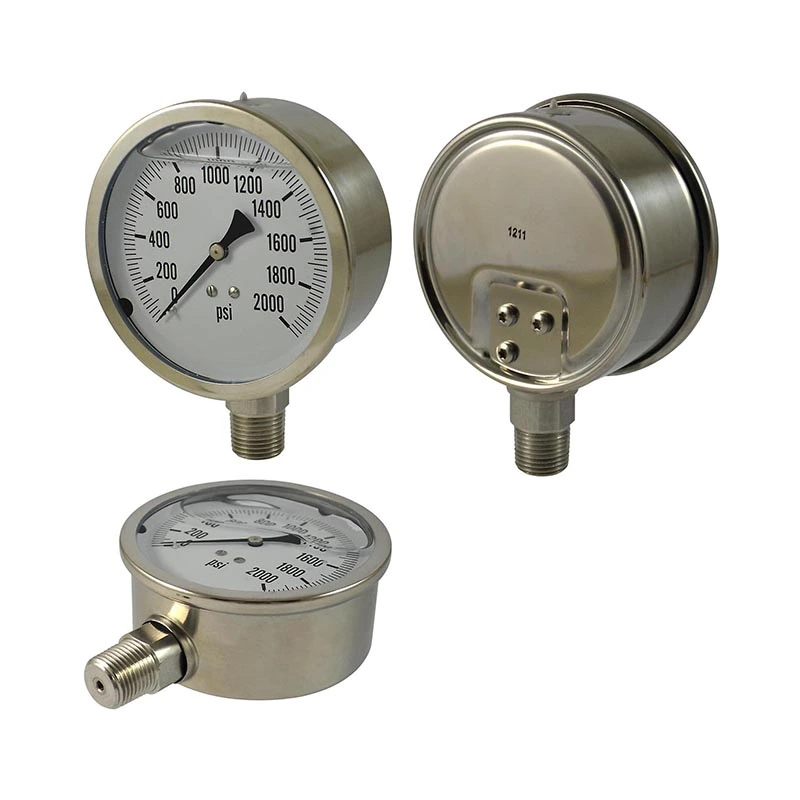

All Stainless Steel Oil Filled Pressure Gauge

Applications

1301 All stainless steel pressure gauge is very good vibration and shock resistance. For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments. It is approval for the shipbuilding industry, air compressors, HVAC, hydraulic system, water pumps, machine, high humidity applications etc.

Ritherm All stainless steel oil filled pressure gauge Special Features

Model 1301 are made of 304 stainless steel case and crimped ring, stainless steel inside and connection. Nominal dial size 63mm, 80mm, 100mm.

It is a bourdon tube pressure gauge, with High-quality stainless steel materials bourdon tube and movement.

The accuracy is 2.5% or 1.6% full scale.

The mounting can be direct mount (lower mount and back mount), panel mount, flush mount. It has big variety for mounting, which is suitable for all type of installation.

The process connection is available for 1/8”, 1/4”, 3/8”, 1/2”, thread in BSP, NPT, BSPT etc. Special thread is for option.

Pressure range from vacuum to 1bar to 700bar/psi.

It is suitable for indoor use with IP43.

The ambient temperature is suitable for -40+60 deg C.

The working temperature for standard use is -20+70 deg C. For heating industry like steam, please inform us when order, we can make up to +130 deg C with special soldering material.

It is normally filled with glycerin. So we also call it glycerin filled pressure gauge. Glycerin can work at temperature from -20+70 deg C, which is commonly used for damping. If we fill Silicone oil, we called it silicone oil filled pressure gauge. Silicone oil is recommended for low pressure and high temperature applications. We recommend to use silicone oil filled pressure gauge for as low as -40 deg C, and as high as +130 deg C working media or ambient temperature zones. It is often used in very cold weather.

All stainless steel oil filled pressure gauge has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
