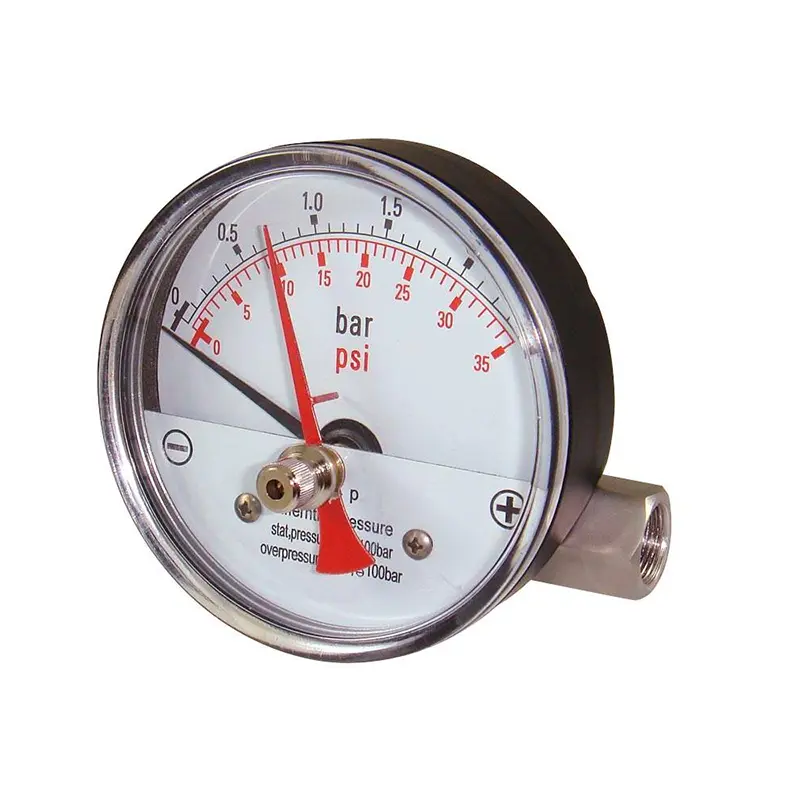

Magnetic Piston Differential Pressure Gauge

Applications

Ritherm Magnetic piston differential pressure gauge is particularly intended for the monitoring of differential pressures even in the case of high working pressures in gas and air preparation and supply systems.

Ritherm Magnetic piston differential pressure gauge Special Features

Ritherm Magnetic piston differential pressure gauge Model 1640 are made of  black aluminium, die-casting, Acryl plastic, snap-fit window. Stainless steel 2 x1/4 female, entry on the right and left Pressure chamber with connections, 304 stainless steel Compression spring, 316 stainless steel Piston, hard ferrite magnet.

The nominal dial size is 80mm.

The mounting is back mount.

The process connection is available for 1/4”, thread in BSP, NPT, BSPT etc. Special thread is for option.

Pressure range from 0...400mbar to 0-10bar

It is suitable for indoor use with IP54.

The ambient temperature is suitable for 0+60 deg C.

Magnetic piston differential pressure gauge has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
