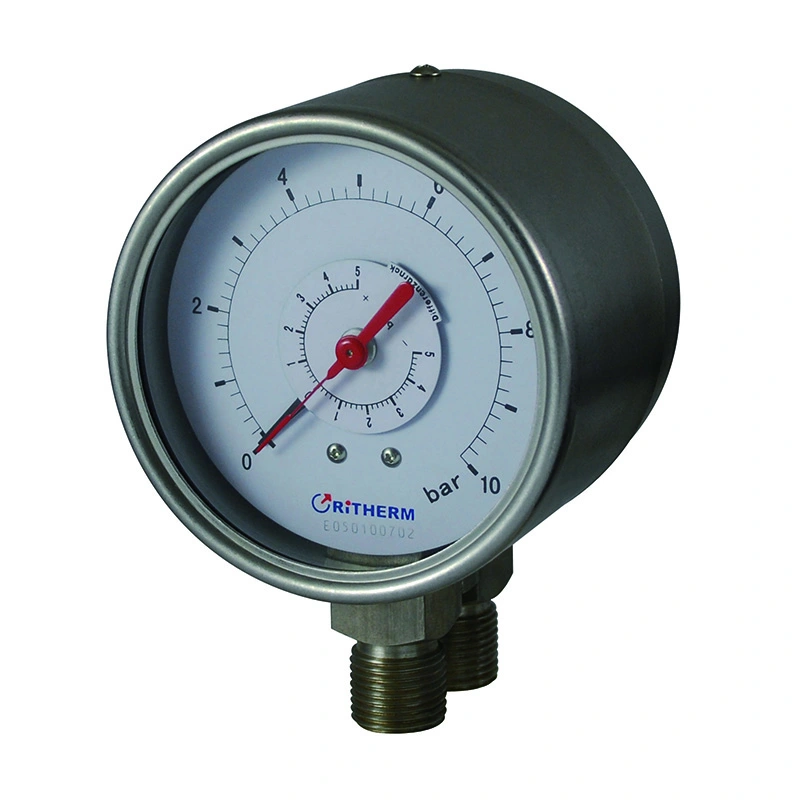

Duplex Differential Pressure Gauge

Applications

Ritherm Duplex differential pressure gauge use the Bourdon tube that suitable for gaseous and liquid media that are not highly viscous or crystallising, also suitable for corrosive enviroment for longer life. It is mainly used for Heating, ventilation and air-conditioning.

Ritherm Duplex differential pressure gauge Special Features

Ritherm Duplex differential pressure gauge Model 1602 are made of 304 stainless steel case and friction ring. Instrument glass window, 316 bourdon tube and connection. The nominal dial size is 100mm.

The mounting is lower mount.

The process connection is available for 1/2”, thread in BSP, NPT, BSPT etc. Special thread is for option.

Pressure range from 0bar to 60bar.

It is suitable for indoor use with IP54.

The ambient temperature is suitable for -20+60 deg C.

Duplex differential pressure gauge has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
