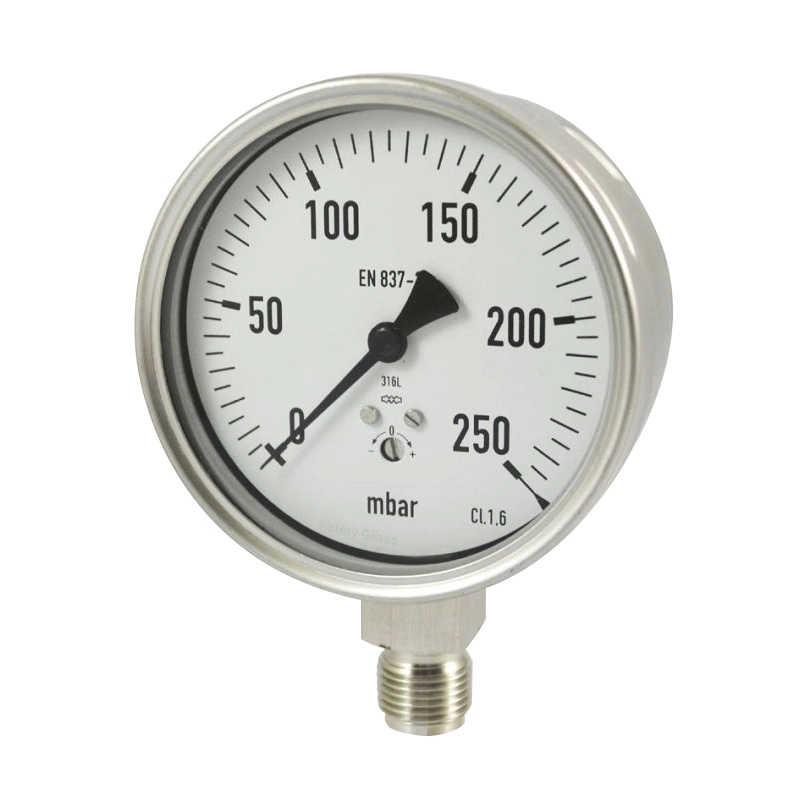

All Stainless Steel Capsule Low Pressure Gauge

Applications

Ritherm All stainless steel Capsule low pressure gauge is suitable for dry, corrosive environments and gaseous media. Also suitable in process industry, like Chemical, petrochemical, pharmaceutical, biotechnology, machine and power generation industries.

Ritherm All stainless steel Capsule low pressure gauge Special Features

Ritherm All stainless steel Capsule low pressure gauge Model 1410 are made of stainless steel case and instrument glass window, stainless steel  capsule and connection. The nominal dial size is 100mm, 150mm.

The accuracy is 1.6% full scale.

The mounting can be direct mount (lower mount and back mount), panel mount, flush mount. It has big variety for mounting, which is suitable for all type of installation.

The process connection is available for 1/8”, 1/4”, 3/8”, 1/2”, thread in BSP, NPT, BSPT etc. Special thread is for option.

Pressure range from vacuum -600 to 0mbar, 0mbar to 1000mbar.

It is suitable for indoor use with IP54.

The ambient temperature is suitable for -20+60 deg C.

The working temperature for standard use is -20+100 deg C. For heating industry like steam, please inform us when order, we can make up to +130 deg C with special soldering material.

All stainless steel Capsule low pressure gauge has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
