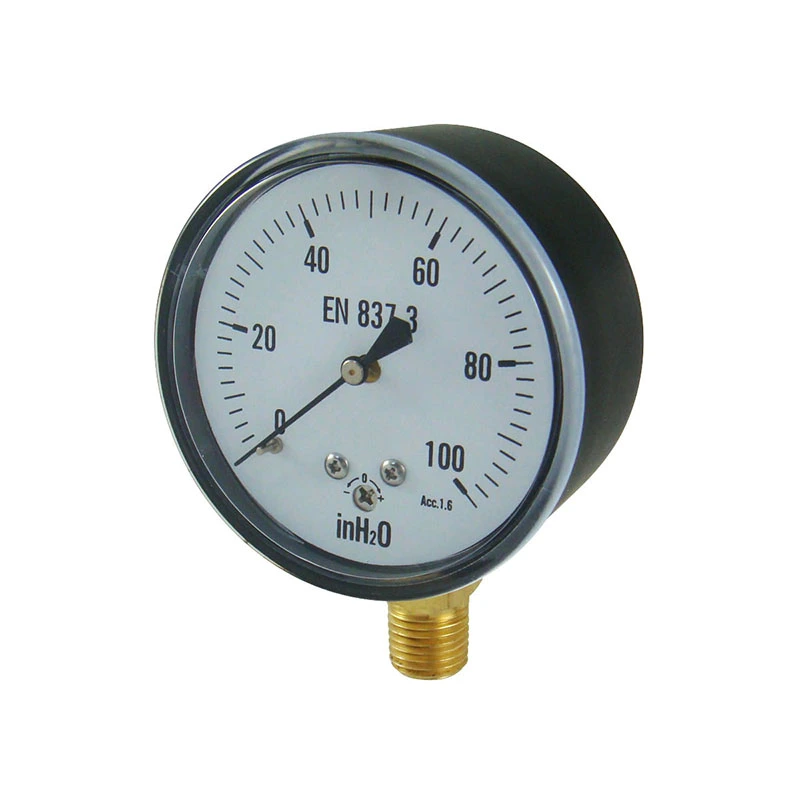

Black Steel Case Capsule Pressure Gauge

Applications

Ritherm Black steel case capsule pressure gauge is suitable for dry and gaseous media that does not attack cop-per alloy parts. It is mainly used for medical.vacuum, laboratory technology for contents measurement and filter monitoring

Ritherm Black steel case capsule pressure gauge Special Features

Ritherm Black steel case capsule pressure gauge Model 1400 are made of black steel case and snap on acrylic window, copper capsule, brass connection. We have dial size 63mm, 75mm, 112mm,

It is a copper capsule pressure gauge, with copper capsule.

The accuracy is 2.5% or 1.6% full scale.

The mounting can be direct mount (lower mount and back mount), panel mount, flush mount. It has big variety for mounting, which is suitable for all type of installation.

The process connection is available for 1/8”, 1/4”, 3/8”, 1/2”, thread in BSP, NPT, BSPT etc. Special thread is for option.

Pressure range from vacuum -600 to 0mbar, 0mbar to 1000mbar.

It is suitable for indoor use with IP43.

The ambient temperature is suitable for -20+60 deg C.

The working temperature for standard use is -20+70 deg C. For heating industry like steam, please inform us when order, we can make up to +130 deg C with special soldering material.

Black steel case capsule pressure gauge has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
