Precision Pressure Gauge

Applications

Ritherm Precision pressure gauge use the Bourdon tube that suitable for testing industrial type pressure gauges or for precision measurement in laboratories. It is mainly used gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments, high-accuracy pressure measurement, testing of industrial type pressure gauges, and Precision measurement in laboratories.

Ritherm Precision pressure gauge Special Features

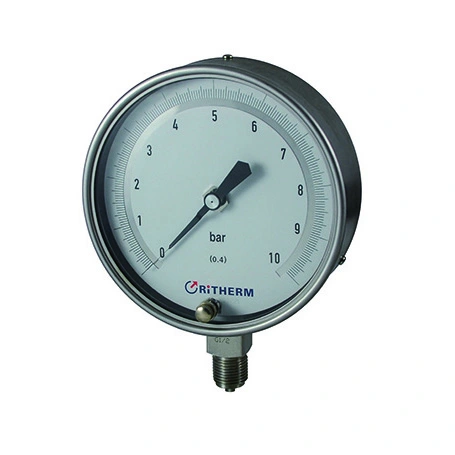

Ritherm Precision pressure gauge Model 1502 are made of stainless steel case and friction ring. Instrument glass window, 316 stainless steel bourdon tube and connection. The nominal dial size is 160mm.

The accuracy is 0.4% or 0.25% full scale.

The mounting can be direct mount (lower mount and back mount), panel mount, flush mount. It has big variety for mounting, which is suitable for all type of installation.

The process connection is available for 1/2”, thread in BSP, NPT, BSPT etc. Special thread is for option.

Pressure range from vacuum -1to 0bar, 0bar to 1000bar.

It is suitable for indoor use with IP54.

The ambient temperature is suitable for -40+60 deg C.

Precision pressure gauge has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
