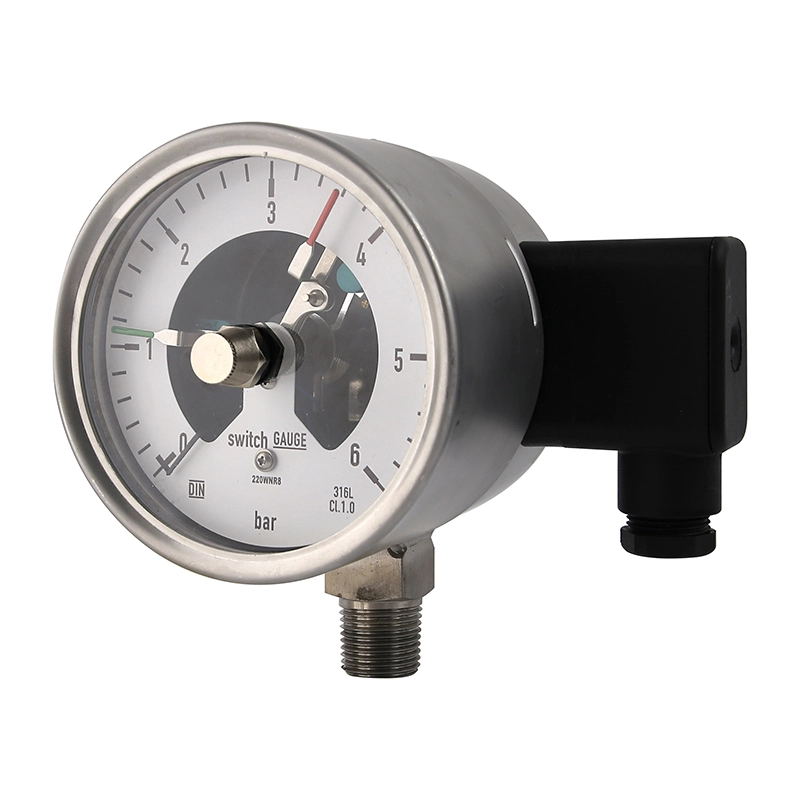

All Stainless Steel Electric Contact Pressure Gauge

Applications

1713 All stainless steel electric contact pressure gauge designed for automatic control and signals transfer. When the pressure gets to the set value, the contact opens/closes the circuits. It has a magnetic electric contact. It can Control and regulation of industrial processes, monitoring of plants and switching of circuits. For gaseous and liquid media that are not attack copper alloy parts.

Ritherm All stainless steel electric contact pressure gauge Special Features

Model 1713 are made of stainless steel case and DIN bayonet ring, stainless steel inside and connection, instrument glass window. Two contacts, one contact, Often open, often close

Maximum working voltage: AC380V or DC220V

Maximum current: 1A

Contact Power: 30VA

Nominal dial size 100mm, and 160mm.

The accuracy is 1.6% or 1.0% full scale.

The mounting can be direct mount (lower mount and back mount), panel mount.

The process connection is available for 1/4”, 3/8”, 1/2”, thread in BSP, NPT, BSPT etc. Special thread is for option.

Pressure range from vacuum to 1bar to 1000bar/psi.

The ambient temperature is suitable for -20+60 deg C.

The working temperature for standard use is 60 deg C.

All stainless steel electric contact pressure gauge has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
