V-shape Glass Thermometer

Applications

2103 V-lined glass thermometer is used in ships, pipelines, some heating facilities, and in industrial applications such as machine building and also in heating, air-conditioning and refrigeration technology.

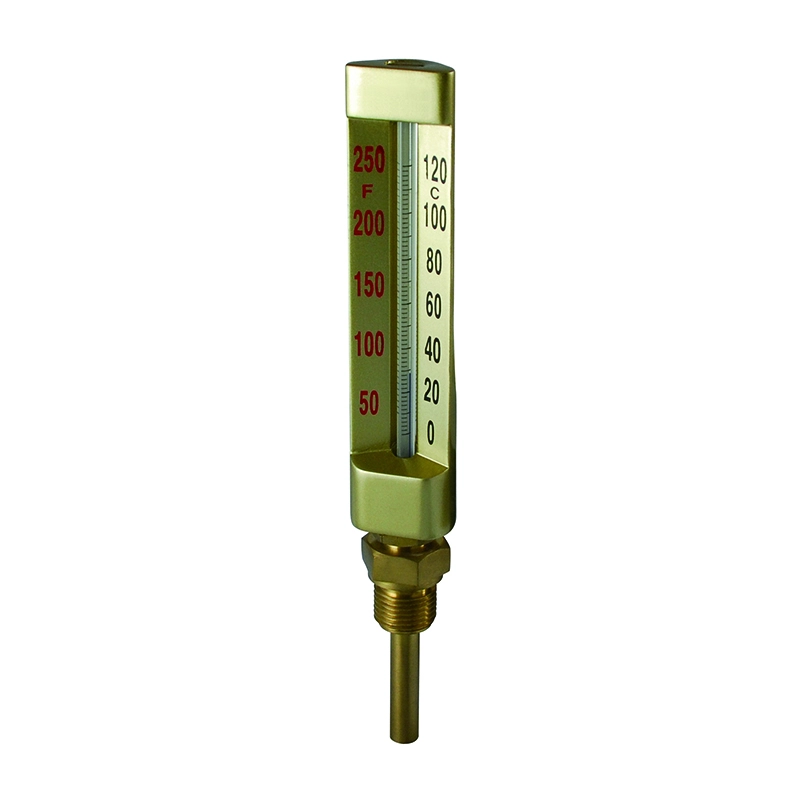

Ritherm V-shape glass thermometer Special Features

V-shape glass thermometer have Glass inserts, Capillary tube of solid glass, prismatic (option of round), Oval opening, with yellow back for mercury and white back for blue liquid column. Graduation of scale is deeply burnt in, thus being absolutely resistant. The main graduations, which correspond with the printing on the casing, are especially clearly outlined.

Capillary fluid:

For standard types from -40+200°C, blue liquid;

For range above +200'C, mercury

lmmersion Tubes, Pockets, 1/2”BSP male

Brass as standard for range up to +250°C,

For ranges over +250'C, chrome plated steel, 304 or 316 stainless steel available.

Length including the thread: 20/40/63/80/100/150/200/250mm

Diameter: 10mm as standard, 12mm for option

V-shape glass thermometer has 1 year lifetime guarantee.

Ritherm is the brand of Rising Instrument. Rising Instrument is one of the top quality pressure gauge manufacturers and suppliers in China. We have been specialized in pressure gauges since 2003. Our products have a good quality, which is produced strictly according to EN 837 standard and ANSI B40.1 standard.
